TC-H-1002

TC-H-1002

分享
  • Details
  • Related Products
Product name

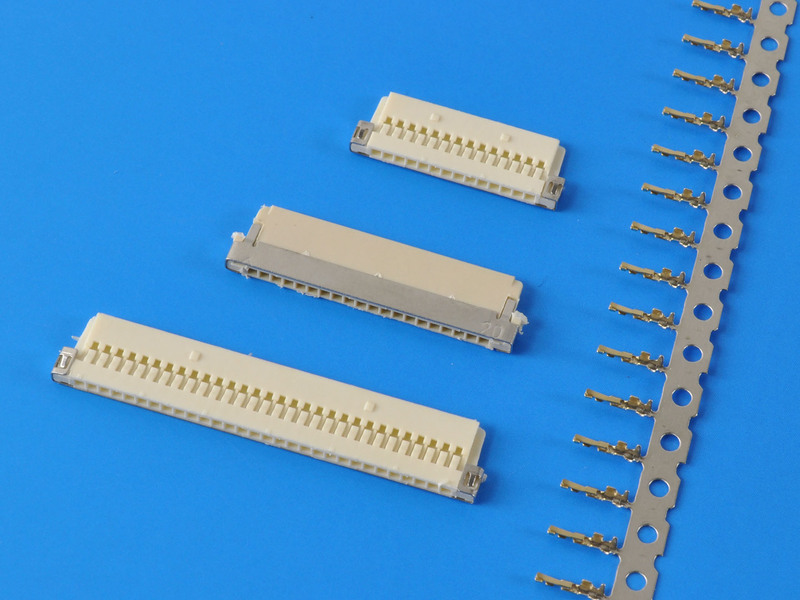

1.0mm pitch wire to board connectors
specification
Current rating: 1A AC,DC / Voltage rating: 100V AC,DC / Temperature range: -25°C - +85° C/ Insulation resistance: 100MΩ/Min. / Withstanding voltage: 250V AC/minute / Contact resistance: 30mΩ/Max.
Material
Housing：Nlylon66 UL94V-0，Terminal：Tin-Plated，Cable：28-32awg
