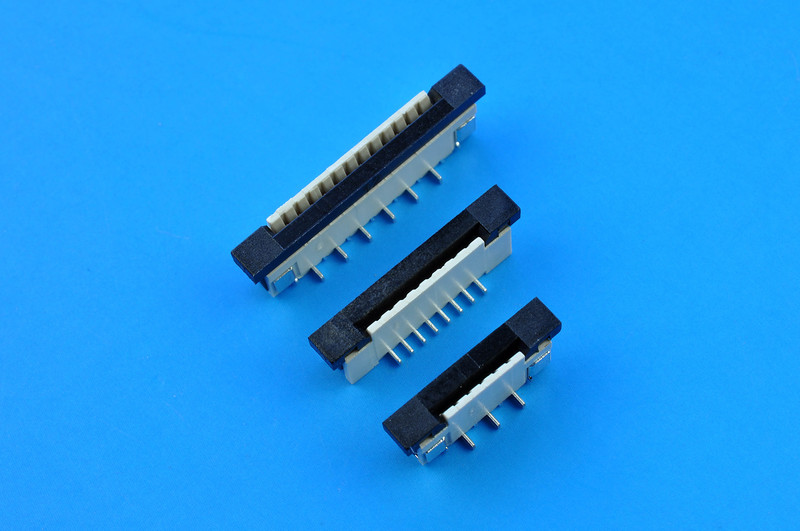

1.0mm pitch FFC/FPC connectors

Current rating: 0.5A AC,DC / Voltage rating: 30V AC,DC / Temperature range: -25°C - +85°C / Insulation resistance: 100MΩ/Min. / Withstanding voltage: 200V AC/minute / Contact resistance: 20mΩ/Max.

Insulator: LCP UL 94V-0 / Actuator: PA46 UL94V-0 / Contact: Phosphor Bronze / TAB: Phosphor Bronze
